Detailed WH1 Description
This is the description of the WH1 from Buick: (Click description to see full color picture)
The WH1 Regal Designer Package will include these RPO codes:
The Stripe (Click here for the "Stripes" using the GM PARTS AND ILLUSTRATION CATALOG)
The two tone stripe is also known in GM land as "Tritone" and is 1/2 inch thick. It is used to separate the black from silver on the car. It can be easily reproduced by using a 1/2 inch black stripe and 1/8 inch silver stripe (try to match the silver to the silver paint). For the top stripe, lay the 1/2 inch black stripe along the upper body line of the car. Then, 1/4 inch down from the top of the black stripe, lay the silver stripe. It should end up as 1/4 black-1/8 silver-1/8 black. Turn the stripe upside down for the lower stripe. See the pictures on the registry and member's web pages for positions.
Picture of Stripe from Headlight Bezel to
Grill
Picture of Stripe around front over Headlight
Bezel
Picture of Stripe at Rear Quarter near
Taillights

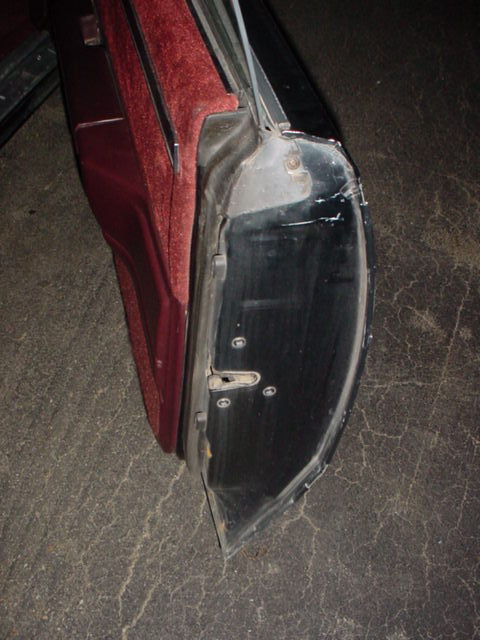

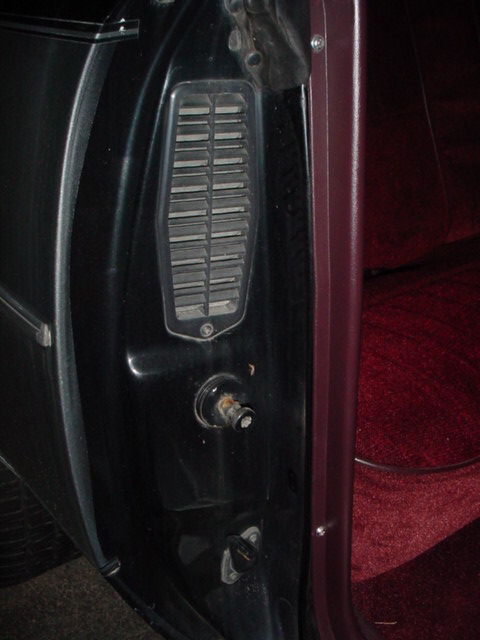

Click for Picture---> Quarter Panel - Door Jam <---Click for picture
